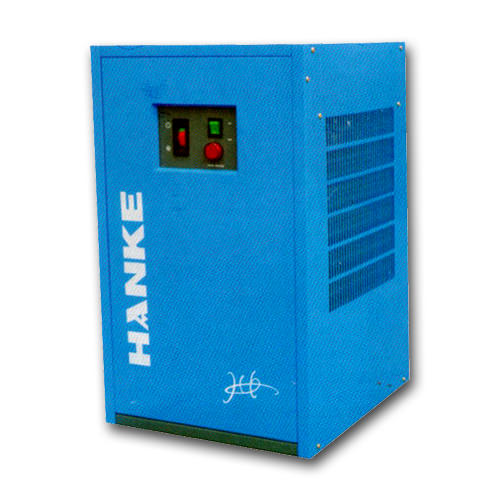

HK-J Series Energy Saving Refrigerated Compressed Air Dryers

Flows from 0.8M³/min to 36M³/min

Working Condition

Standard Model

Working Pressure: 0.6-1.0 MPa

Inlet Temp.: ≤50°C

Standard Working Ambient Temp.: 32°C

Max. Ambient Temp.: 40°C

Pressure Dew Point: 3 to 10°C

High Inlet Temp. Model

Working Pressure: 0.6-1.6 MPa

Inlet Temp.: ≤90°C

Standard Working Ambient Temp.: 32°C

Max. Ambient Temp.: 40°C

Pressure Dew Point: 3 to 10°C

Design Characteristics

- Unique three-in-one plate type heat exchanger design, compact structure, high heat transfer efficiency. Compare to traditional shell tube exchanger, unit heat transfer area enlarges 5 to 10 times.

- High strength aluminium alloy and stainless steel design which is small and light.

- Imported refrigerated valve, compressor is Panasonic.

- Economic auto drain.

- Sensitive and reliable instrument control components.

Technical Parameters (click to enlarge)
